BYOD — Catálogo DNA Pro AV

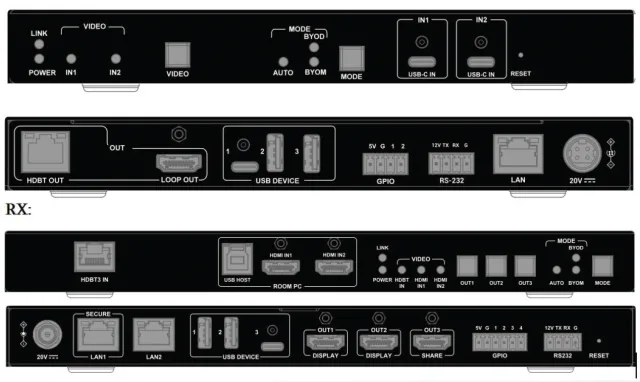

MS22D100T-2C10-000&M33D100R-2H10-000 — Meeting Room Presentation Switch & Extension Kit

Categoria: BYOD

Resolução: 5K/4K

Alcance: 100m over HDBT

The Meeting Room Presentation Switch & Extension Kit delivers an automated, high-performance AV and USB solution designed for mid-sized conference rooms adopting BYOM and BYOD workflows.
Two full-featured USB-C inputs
Dedicated Room PC/MTR input (2x HDMI + USB)

Categoria: BYOD

Resolução: Dual-screen 5K/4K

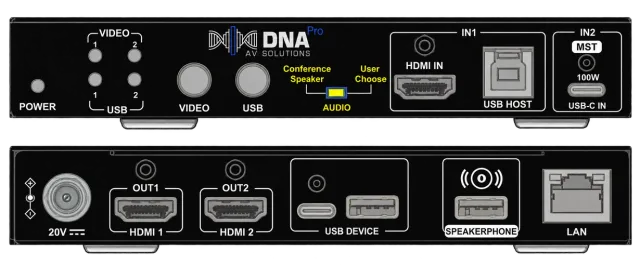

MS22-CH00-000 is a dual-screen conference dock designed to simplify meeting setups. It provides two inputs: a dedicated Room PC input (HDMI 2.0 + USB 3.0) and a full-featured USB-C input, supporting automatic and manual signal switching for dual-screen display. The dock supports independent dual-screen 5K/4K video output via the MST protocol, enabling extended or duplicated displays, and delivers up to 100W charging power via the USB-C port.
One full-featured USB-C input with MST
One HDMI + USB-B input

Categoria: BYOD

Resolução: 5K/4K

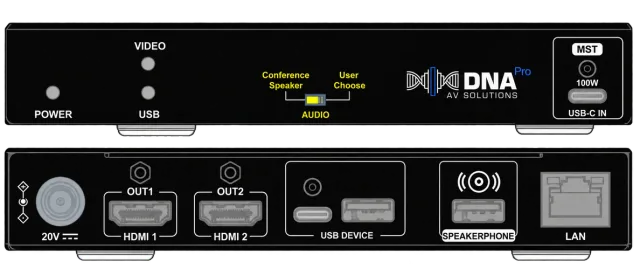

MS12-C00-000 is a dual-display conference dock for Bring Your Own Meeting (BYOM) scenarios. It supports MST dual-screen expansion, and can expand two HDMI 2.0 (5K/4K) video outputs, multiple USB 3.0 ports, 100W power delivery, and a 1Gbps Ethernet port to the connected laptop via a single USB-C cable.
One full-featured USB-C input with MST
Dual outputs
